AND7 GigaBERT certificatie tester



Bestel
Detail

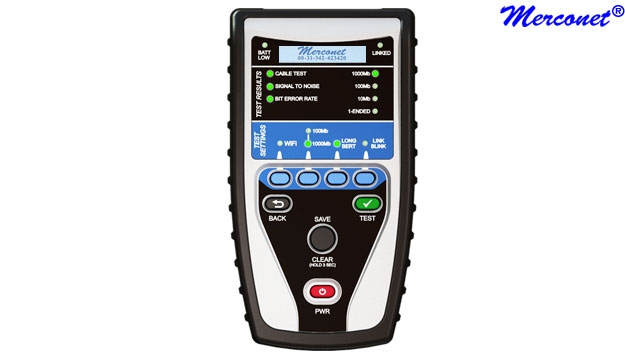

The AND7 set is for testing and measuring ethernet connections in order to determine the speed capability of individual CAT 5/6 links within installed LAN network systems. With the push of a button the AND7 set automatically measures key metrics like Signal to Noise Ratio and Skew as well as generating a Bit Error Rate Test (BERT) that data packets for transmission and receiving along a link to see both error generation and/or noise interference effects that may impede data flow at the highest possible level.
- All tests reports are sent via Wi-Fi in a spreadsheet format
- No interpretation needed
- On board Red and Green LEDs for instant clarity of speed conditions


Kenmerk
  • Wireless reporting via Wifi of results to mobile devices or laptops
  • 1 unit to test basic features connectivity

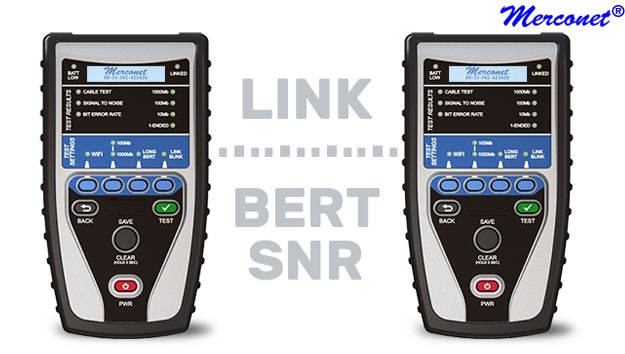

  • Two units to perform a GigTest to test data reliability of a link
  • BERT test with 2 units
  • Tests can be saved when not linked and uploaded to app when linked

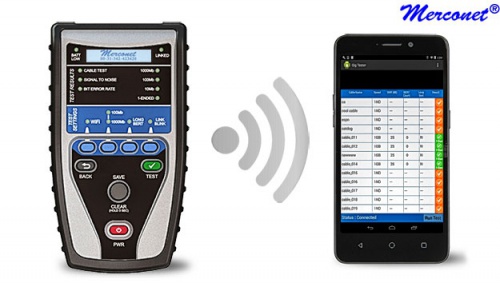

  • WiFi connectivity to Smart Phone for test reports
  • Android App for controlling, uploading in real time, naming and saving results
  • iOS (Apple) App for controlling, uploading in real time, naming and saving results.
  • Save up to 40 test results
Specificatie
Test reports
Number of reports: 40
Android App: Yes
iOS (Apple) App: Yes
Testing
One ended Cable Test: Detects wiring issues or bad connections per TIA568 A/B
Linked Speed Indication: Green/Red LEDs showing speed link rate at each level, IEEE 802-3
Skew Test: Measures Time domain differences between pairs which can cause data errors, IEEE 802.3
Signal to Noise Ratio: Detects and measures electronic noise, both ambient, alien and internally generated, per IEEE 802.3
Bit Error Rate Test (BERT): Generating/receiving actual data packets at Gbit speed, receiving and measuring time and accuracy, per IEEE 802.3. Two units needed
Long BERT Mode - 10 times as long as a standard BERT test: Generates sustained BERT packets to help detect spurious/impulse noise which can result in data error re-transmission effects
General specifications
Display: LEDs - red and green
Connectors: RJ45 Test Connector
  Micro USB
Battery Life: 6 pcs. AA alkaline batteries, 9VDC nominal,
  2,200 mA-hr (typical)
  Linked – 7 hrs typical,
  Not linked – 30 hrs typical
Operating altitude: 3048 meters
Operating temperature: 0 to 50 °C
Humidity: 10 to 90% non-condensing
Enclosure: High Strength ABS V0 plastic with boot
Size: 4.7 x 9.15 x 17.3 cm
Weight: 510 grams
Goedkeuring: CE, RoHS en WEEE
Content

2 units AND7 GigaBERT certificatie tester (Smartphone not included)

Prijs
1.548,80 € (1.280,00 € excl VAT) each
