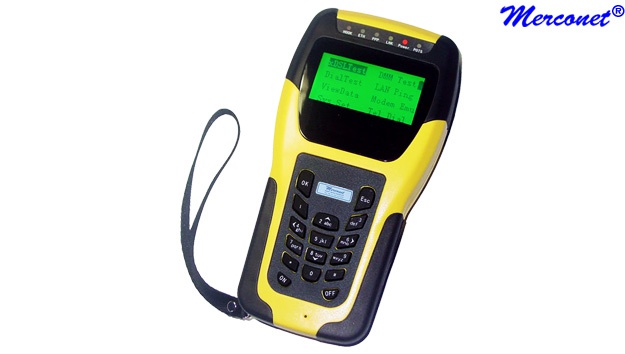

The AHE0 ADSL2+ tester is multi-functional hand-held ADSL2+ test instrument with small size, specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+ READSL etc) and maintenance. It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on. The tester adopts LCD display and menu operation which can display the test results directly and improve the xDSL broadband service greatly. It’s the best choice for the field operators of installation and maintenance.
Inzetbaar als:
- DSL Physical layer test
- Modem Emulation (Replace the user Modem completely)
- PPPoE Dialing (RFC1683,RFC2684,RFC2516）
- PPPoA Dialing (RFC2364)
- IPOA Dialing
- Telephone Function
- DMM Test (AC Voltage: 0 to 400 V; DC Voltage: 0 to 290 V; Capacitance:0 to 1000nF, - Loop Resistance: 0 to 20KΩ;Insulation Resistance: 0 to 50MΩ；Distance Test)
- Ping Function (WAN & LAN)
- Data upload to computer by RS232 core and software management
- Setup system parameter: backlight time, shut off automatically time without operation, press tone, revise PPPoE/PPPoA dial attribute, user name and password, restore factory value and so on.
- Check dangerous voltage
- Four grades service judge(Excellent, Good ,Ok，Poor)
Kenmerk
- Test objects: ADSL; ADSL2; ADSL2+; READSL
- Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
- Supports Modem emulation and simulating login to Internet
- Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
- Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

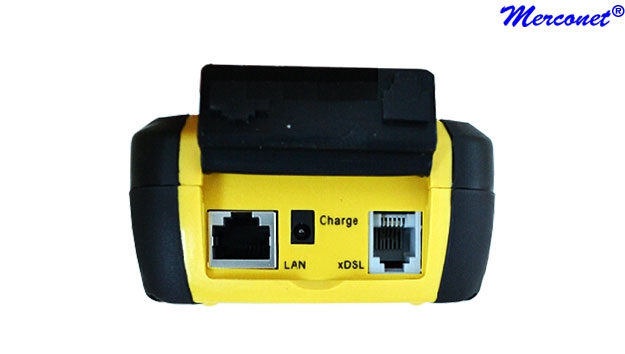

- Connects to CO via alligator clip or RJ11
- Rechargeable Li-ion Battery
- Beep and LEDs alarm indications (Lower Power, PPP, LAN, ADSL)
- Data memory capacity: 50 records
- LCD display, Menu operation
- Auto shut off if no any operation on keyboard
- Software management
- Simple, portable and money-saved
Specificatie
| ADSL2+ | |
| Standards: | ITU G.992.1(G.dmt), |
| | ITU G.992.2(G.lite), |
| | ITU G.994.1(G.hs), |
| | ANSI T1.413 issue #2， |
| | ITU G.992.5(ADSL2+)Annex L |
| Up channel rate: | 0~1.2Mbps |
| Down channel rate: | 0~24Mbps |
| Up/Down attenuation: | 0~63.5dB |
| Up/Down noise margin: | 0~32dB |
| Output power: | Available |
| Error test: | CRC, FEC, HEC, NCD, LOS |
| Display DSL connect mode: | Available |
| Display channel bit map: | Available |
| ADSL | |
| Standards: | ITU G.992.1 (G.dmt) |
| | ITU G.992.2(G.lite) |
| | ITU G.994.1(G.hs) |
| | ANSI T1.413 Issue # 2 |
| Up channel rate: | 0~1Mbps |
| Down channel rate: | 0~8Mbps |
| Up/Down attenuation: | 0~63.5dB |
| Up/Down noise margin: | 0~32dB |
| Output power: | Available |
| Error test: | CRC, FEC, HEC, NCD, LOS |
| Display DSL connect mode: | Available |
| Display channel bit map: | Available |
| General Specification | |
| Power supply: | Internal Rechargeable 2800mAH Li-ion battery |
| Battery duration: | 4 to 5 hour |
| Working temperature: | 10-50°C |
| Working moisture: | 5%-90% |
| Dimensions: | 180mm x 93mm x 48mm |
| Weight: | <0.5kg |
| Goedkeuring: | CE, RoHS en WEEE |
Content
AHE0 ADSL2+ VDSL2 tester
Engelse gebruiksaanwijzing
Prijs
840,95 € (695,00 € exclusief BTW) per stuk
