Detail
The AEA4 is a handheld expert instrument for Ethernet deployment, maintenance, and troubleshooting. It supports 10/100/1000Mbps RJ45 electrical interface and 100/1000Mbps SFP optical interface, monitors network operation status through termination mode. It can be used for cable testing, LAN testing, and terminal emulation. Meanwhile, the instrument provides comprehensive network performance evaluation for the deployment and maintenance of networks and services through traffic analysis, BER, and RFC2544. The AEA4 is the right product meeting the current testing requirements for Ethernet applications in IP network, transport network and MSTP. Comprehensive test functions, various port configurations, flexible operation modes and friendly user interface make this product outstanding in the market.
Kenmerk
- Portable and compact design, smaller and lighter
- Simple and easy operation: high-definition color touch screen and graphical user interface
- Powerful performance analysis: provide comprehensive network performance evaluation for the deployment and maintenance of networks and services through traffic analysis, BER, and RFC2544
- Good compatibility: support end-to-end testing with our other Ethernet testers
- Built-in large capacity Li-ion battery, longer operating time
- Optimized structure design, dust-proof and antishock
- Advanced cooling system ensures long time and stable operation
- Applications:

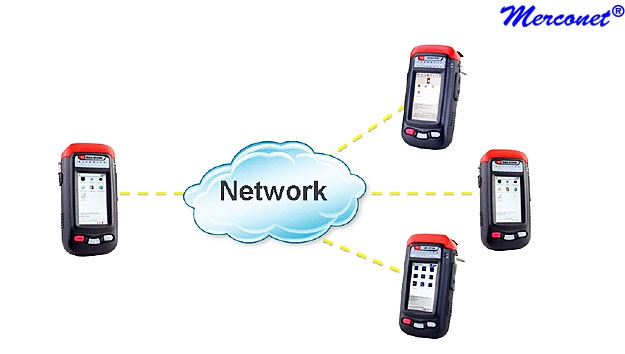

- End-to-end testing
Use two instruments to do traffic performance testing and BER testing. The far-end instrument can automatically do RFE2544 testing with the near-end

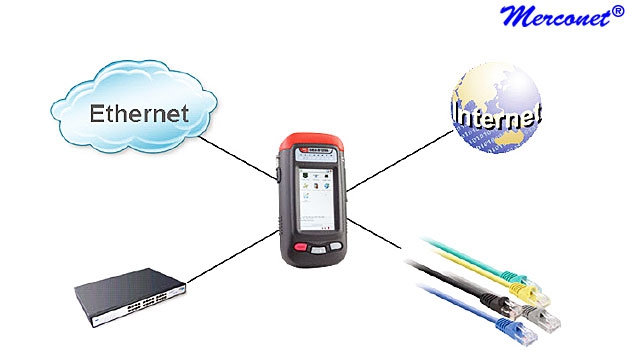

- Termination mode
Use the instrument to connect network, cable or equipment and execute connectivity testing, cable testing, terminal emulation, LAN testing

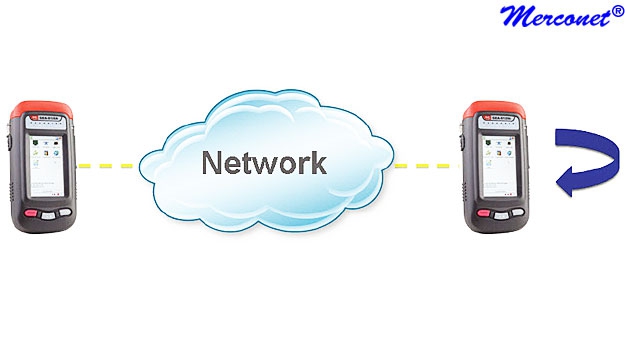

- Loopback mode
The instrument is in the status of data loop back and loops back received data according to data loop back layer.
Info
Traffic generation
Gigabit wire-speed traffic generation capability, support VLAN, IP QOS, and PRBS setting, multi-stream configuration, up to 8 streams
Traffic statistics
Statistics for sending and receiving frames, utilization rate, error frame, different length frame, VLAN frame, pause frame, broadcast frame etc.
BER testing
Support layer 2 or layer 3 BER testing
RFC2544 testing
Support throughput, latency, frame loss rate and back-to-back testing
Data loopback
Support the physical layer, MAC layer, IP layer data loopback
Network device scan
Support for IP lookup in accordance with existing equipment and networks for open ports
Terminal emulation
Support PPPoE dial-up connection, Web browsing, FTP download testing
PoE testing
Identify PoE device
Common network tool
Support PING, traceroute, flashing port, tone generation, link detection, and optical power testing
Cable testing
Cable length, sequence, open, short, crosstalk testing, wiremap testing Data management: support save, view, delete, copy and other operations of the test results
Specificatie

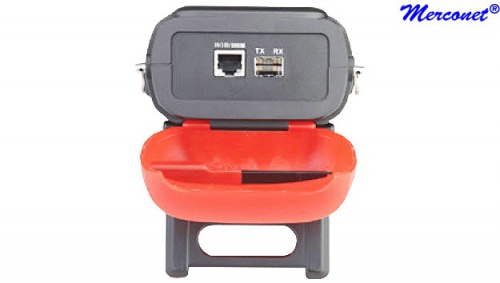

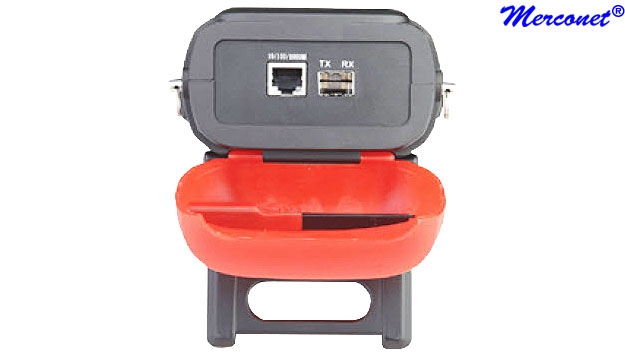

| Test interface: | 10/100/1000BASE-T×1 |
| | 100/1000BASE-X×1 |
| Protocol: | DIX, 802.3SNAP |
| Interface: | USB, RJ45, DC power |
| Data storage: | 2G SD Card |
Traffic generation:
| Gigabit wire-speed traffic generation capability, support VLAN, IP QOS, and PRBS setting, multi-stream configuration, up to 8 streams |
| Traffic statistics: | Statistics for sending and receiving frames, utilization rate, error frame, different length frame, VLAN frame, pause frame, broadcast frame etc. |
| BER testing: | Support layer 2 or layer 3 BER testing |
| RFC2544 testing: | Support throughput, latency, frame loss rate and back-to-back testing |
| Data loopback: | Support the physical layer, MAC layer, IP layer data loopback |
Network device scan:
| Support for IP lookup in accordance with existing equipment and networks for open ports |
| Terminal emulation: | Support PPPoE dial-up connection, Web browsing, FTP download testing |

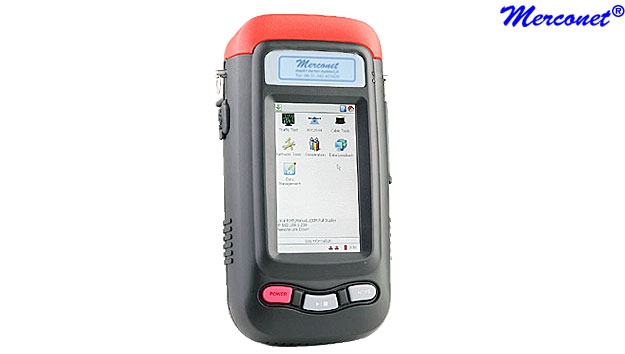

| Display: | Color 10cm. LCD, 480×272 |
| Operation mode: | Touch screen |
| Battery: | Li-ion battery |
| Operation time: | >7 hours |
| Operation temperature: | -10˚C ~ +50˚C |
| Operation humidity: | 10% ~ 90% |
| Size: | 210 x 110 x 60mm |
| Weight: | 1kg |
| Goedkeuring: | CE, RoHS en WEEE |
Content

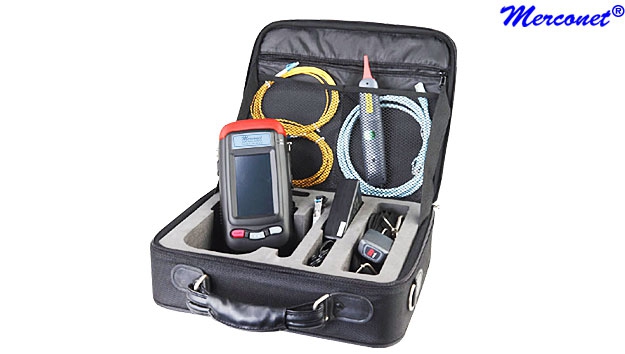

- AEA4 Ethernet analyzer
- GB20 Gebruiksaanwijzing
Prijs
2.678,94 € (2.214,00 € exclusief BTW) per stuk
Prijzen zijn per stuk, exclusief 21% BTW en gelden voor levering af magazijn Voorthuizen. Bij levering in Nederland of in België worden verzendkosten altijd in rekening gebracht tot maximaal EUR 25,00. Ditzelfde geldt voor expreskosten en/of rembourskosten. Bij de producten trainingen en cursussen is na het bevestigen van de cursusdatum, bij het niet verschijnen van de deelnemer(s), de verplichting ontstaan tot volledige betaling. Het volgen op een latere datum ingeval van niet verschijnen is in overleg mogelijk, maar wordt uitsluitend gezien als service. Hieruit kan geen enkel recht uit worden onttrokken.
